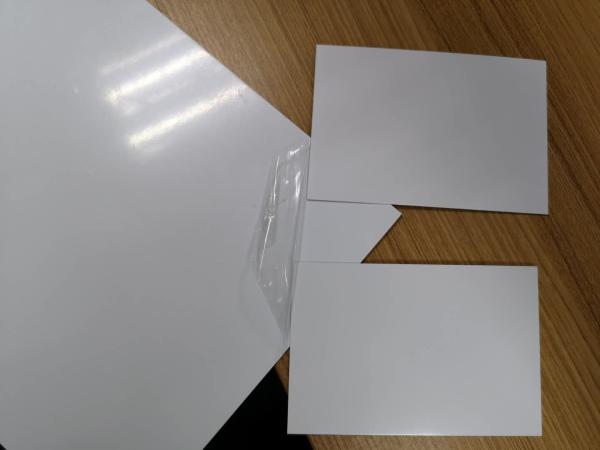

High Gloss White Color Coated Aluminum 2600mm Width For Truck Body

  • 1
  • 2
  • 3

Brand Name : Dingang

Model Number : Dingang - PPAL

Certification : SGS,ITS,BV

Place of Origin : China

MOQ : 1000 Kgs / 1 Metric Ton

Price : Negotiable

Supply Ability : 5000 Tons / Per Month

Delivery Time : Within 35 Days After Order Confirmed And Down Paymetn Received

Packaging Details : Seaworthy Packing With Wooden Pallet

Product name : prepainted aluminium coil

Alloy : AA3105&5052

Temper : H16,H18,H24

Interior Diameter : 508mm

Color Option : Ral Color Code Or As Per Clients Requirements And Sample

Application : Truck Body Manufacture

Payment Terms : T/T,L/C

Contact Now

High Gloss White Color Coated Aluminum 2600mm Width Used For Truck Body Manufacturer


Color coated aluminum (prepainted aluminum),which is produced with aluminum sheet or coil and processed by coating with color or pattern.
In common sense, here are two kinds of coating PVDF and PE.Compared with other section steel prepainted aluminum coil is the more popular material, because of its excellent property. Firstly the property is very stable so the surface is erosion resistant, warranty could up to 30 years long after special treatment. Then,the density is the lowest among metal material when volume is fixed.

High Gloss White Color Coated Aluminum 2600mm Width For Truck Body

Specifications of prepainted aluminium coil :

Alloy AA 3105 Or AA 5052
Temper H24(All According Customers' Requirement)
Standard ASTM, ASME, AISI, JIS, DIN, EN, ISO, GB And Etc
Thickness 0.80mm -2.00mm
Width 1800-2650mm
Thickness Paint Layer PE Paint with more than 23 micron
Interior Diameter 505mm
Color Ral Color Code Or As Per Clients Requirements And Actual Sample
Coating Hardness More Than 2H(pencil hardness)
Impact Resistance No Cracking And Peeling (50kg/cm,ASTMD-2794:1993)
Flexibility (T-bend) No More Than 2T
MEK Resistance More Than 100



Paint Performance:

Test Item Paint
PVDF PE And Others
With Varnish Without Varnish
Paint Film Thickness, μ ≥22 ≥30 ≥18
Shine Tolerance Shine≥80 Unit, ±10 Unit Allowed
Shine≥20-80 Unit, ±7 Unit Allowed
Shine<20 Unit, ±5 Unit Allowed
Pencil Hardness ≥1H
Abrasion Resistance, L/μm ≥5 --
T-bend ≤2T ≤3T
Impact Strength 50KG.CM Without Depainting And Crack
Adhesive Force (Class) ≥1
Boiling Water Resistance Unvarying
Chemical Resistance Acid Endurance Unvarying
Alkali Stability Unvarying
Oil Resistivity Unvarying
Resistance To Solvent ≥70 ≥50
Scrub Resistance ≥10000 Times Unvarying
Dirt Resistance ≤15% --
Salt Spray Resistance(class) ≥ 2 class

--


Appliance of super wide prepainted aluminium coil :

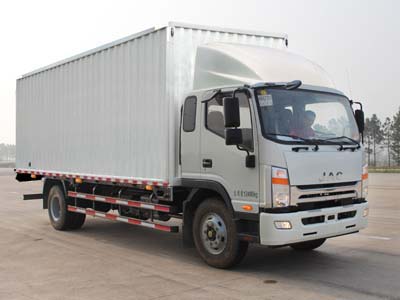

Super wide color coated aluminum coil is widely used in the manufactuer of truck body manufacturing.

We can produce the material which the width is on the range of 1800-2500mm.

High Gloss White Color Coated Aluminum 2600mm Width For Truck Body
