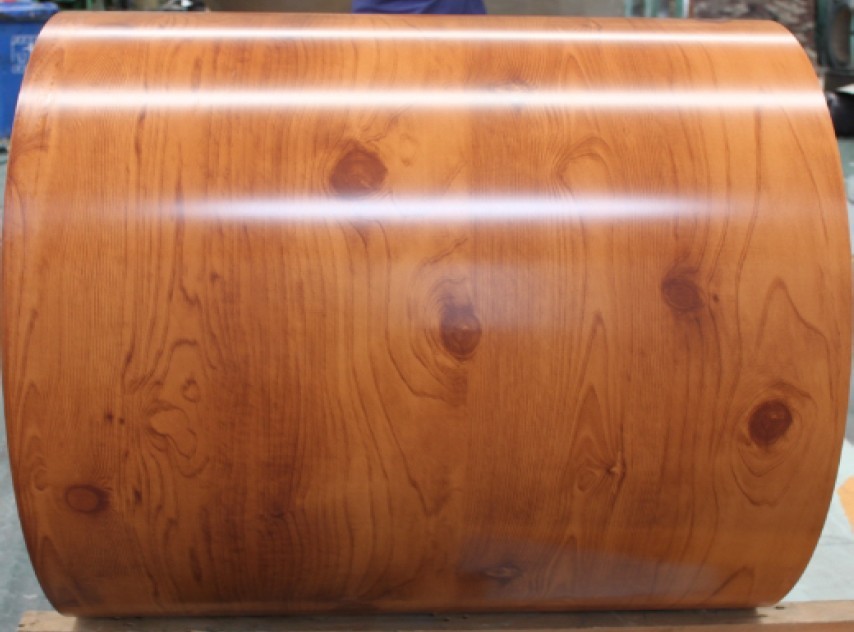

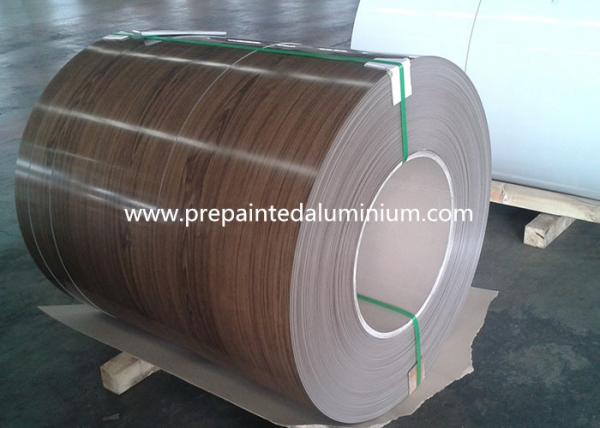

Wooden pattern color aluminium coil, 3003 H24 used in ACP industry
Pre painted aluminium coil details:
1) The types of Pre painted aluminium coil: PVDF(mainly), PE and ACRYLIC
2) Thickness of total coating: PVDF: More then 25 micron; PE, more then 18 micron.
3) Paint: PPG or Nippon.
4) Interior diameter: 505mm
5) Width: From 30mm-1500mm, sheets are also available
6) Color: Panton, RAL or refer to customers' counter sample.
7) Coating hardness: (pencil hardness) more than 2H
8) Impact resistance: No cracking and peeling(50kg/cm, ASTMD-2794: 1993)
9) Flexibility(T-bend): No more than 2T
10) MEK resistance: More than 100
Mainly pattern:
Detailed Product Description:
| Alloy: | AA3003,3004,3105 | Temper: | H14,H16,H18,H24,H26, H32,H34,H111,H112,T3,T5,T6 Etc |
| Coating Type: | PE Or PVDF | Interior Diameter: | 508mm |
| Material Width: | From 30 To 2650mm | Material Thickness: | 0.3-0.5mm |
| Color Option: | Ral Color Code Or As Per Clients Requirements And Sample |
|
|

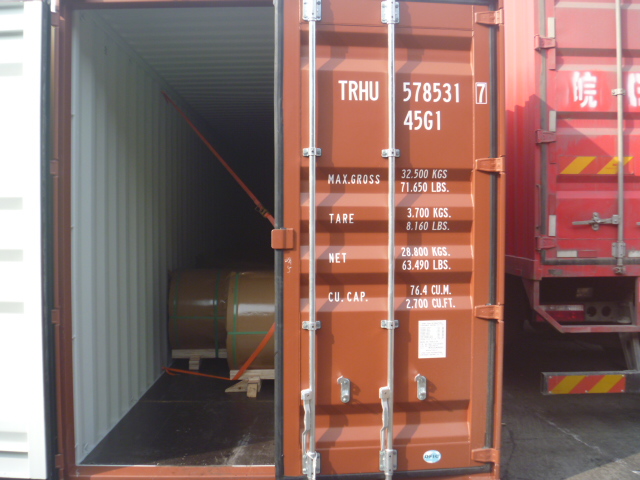

Packing:
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)
Appliance:
As per types of surface coating of paint, color coated aluminum coils can be divided into polyester (PE) coated aluminum coil, fluorocarbon (PVDF) coating aluminum coil and Epoxy coated aluminum coil.
Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, can, home appliances board and embossed aluminum coil.
